Change is what Buddhism is all about.  But this is an off-road adventure not a centuries old philosophical approach to life…  Or is it.  What follows is an evolution in our quest for the perfect suspension.

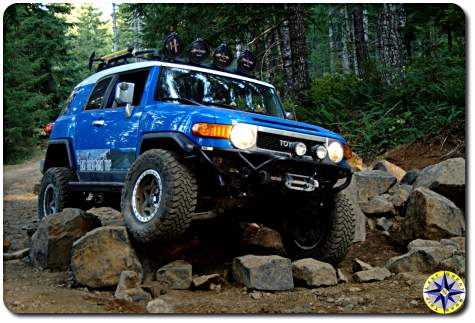

Back in late 2006 we purchased the Blue Bunny, our early 2007 Toyota FJ Cruiser, one of the first to hit the west cost.  On a warm sunny fall day we drove it off the lot in Portland, headed back up to Seattle and fell in love… Thanks to the independent front suspension (IFS) the FJ Cruiser’s ride is smooth.  The 4.0-liter 1GR-FE DOHC V6 engine puts out loads of torque and horse power.  The 2 speed transfer case, rear locking differential and A-trac traction control system make the FJC a pack mule that will go up and down most 4×4 trails right out of the box.  But we don’t travel down most 4×4 trails… and so our quest began for a smooth riding mountain goat that will go just about anywhere and remain dependable enough to get us there and back without a team  of mechanics and a fleet of chase vehicles…  Not that we wouldn’t like a traveling pit crew…  we just don’t have it in the budget.

The first thing we needed for our adventures was added ground clearance and the ability to soak up miles and miles of washboard roads. A common misconception is that a lift kit gives you ground clearance.  That is not true.  A lift allows you room to put on larger tiers and it is the taller tiers that deliver ground clearance.  So our goal was to lift the rig as little as possible, keeping our center of gravity low, while allowing us to stuff 295x17x70 Toyo mud tires into the wheel-wells with enough space for travel up and down.  We considered our FJ Cruiser lift options and decided on a suspension lift that would maintain the smooth IFS front travel rather than swapping to a solid axle aimed for more purpose built rock crawling.

In order to reach our ground clearance goal we started out with a 3″ Sway-A-Way suspension lift front and back.   The Sway-A-Way coil-overs can be individually adjusted allowing us to dial in the pre-load to compensate for the added weight of bumper, winch and any winter weight the driver might be carrying.  The lift allowed us to stuff our tires into the wheel-well giving us the clearance we were looking to gain.  Over the next year and half we explored our way up to the Arctic Ocean and wheeled local trails working on off-road driving skills in order to take our adventures to the next level…  Through out this time our 3″ lift met all our needs.

As our desire to explore further grew, ground clearance was no longer enough.  We wanted to add travel and increase the capabilities of our rig as it travels over washboard dirt roads and boulder filled trails.  In order to pick up the travel we were after, we choose a Total Chaos front long travel kit.  The kit achieves it’s additional travel by pushing the wheels out 2″ further on each side making room for longer coil-overs.  On our rig we kept the lift at about 3″ and took the gain in travel through droop (wheel falling down).  The additional droop keeps the wheels on the ground over all sorts of terrain as the rig rides smooth across it all.  The added travel proved invaluable when we tested it on our Rubicon off-road adventure.

While the front travel jumped from a stock 7.81″ up to about 12″ with the long travel kit, the rear with it’s 3″ lift was stuck at around 9″.  Although impressive numbers, running down the Baja it became clear that the rear end, with its 2″ diameter shocks and original factory geometry could not keep up with the front end or the demands of our Baja off-road adventure.  So here is where we are going in our evolution… Introducing the Metal Tech rear long travel.

The FJC comes from the factory with a five point rear suspension.  Metal Tech offers their FJ Cruiser Rear Long Travel Suspension Package – Stage 2 package which ups the shock travel to 11.5″ and allows the wheel to move 27″ from top to bottom.

Ask anyone and they will tell you Metal Tech makes great stuff and their kit is better than anything else on the market. But we’re looking for a bit more custom solution so we’ve asked Metal Tech to engineer a solution that will be able to take us to the top of the world.

We plan to start with Metal Tech’s progressive rear springs.  Their springs stand 19 1/4″ high but allow you to maintain a rig height the same as a standard 3″ lift.  Metal Tech has engineered a progressive rate into their spring that allows for soft supple expansion that gives more flex when needed while the stiffer section maintains lift and support.  Remember our goal, lots of travel while keeping the center of gravity as low as possible… Well we didn’t forget and neither did Metal Tech.

We are also going to utilize Metal Tech’s three link suspension system (although its is 4 when you count the pan-hard bar which we’ll maintain daily driving, although who knows…  LT is talking about swapping it for a torsion bar.  Metal Tech uses 2″ x 3/8″ wall DOM tubing for their links and then mounts them to the frame using 1/4″ and 3/8″ plate to protect the ends.  If you’ve ever bought anything from these guys you know it is all about the steel.  They specify that the steel their suppliers provide, meets their requirements for tensile strength and hardness to ensure its ability to take the punishment that wheeling delivers.

In order to control the up down oscillations as our rig bombs down the trails we’ll be installing 2 1/2″ diameter, 12″ travel, remote reserve, 3 tube by-pass Sway-A-Way shocks.  If you ask us why we are choosing these shocks we’d tell you… A single 2 1/2″ diameter shocks is comparable to the performance of dual 2″ diameter shocks.  The by-passes will let us fine tune our shocks’ compression and rebound in order to compensate for different terrains and loads as we go from daily driver, to 4×4 trails to all out expeditions.  Shocks benefit from a large external reservoir that offers the greatest oil of volume.  The oil flows freely between the shock body and reservoir through a flexible high pressure hose, providing excellent heat dissipation and preventing fad during a long, hard day on the trail.  To ensure we have enough room for the larger shocks we’ll be relocating them to outboard hoops that let us squeeze out every bit of the 12″ travel.  And why are we choosing Sway-A-Way?  We need to know we can count on our shocks through any terrain and Sway-A-Way has proven themselves to us since our initial 3″ lift…  It’s all we’ve run.  Their quality and toughness have performed when we needed them most.

Metal Tech has spent significant time working out the geometry to ensure our rig will have the proper squat and anti-squat needed to maintain proper handling.  LT has also worked out the spacing requirements for those bigger rear shocks and dialed in their springs to take advantage f all that travel.

The truth is…  there is no such thing as the perfect suspension.  The suspension set up we are working on is the best compromise between flex, stiffness, adjust-ability, maintainability, ride, and cost for our style of wheeling.  What works for us is not the best for a class I race rig or full time rock crawler…  But this is the best build in the evolution, for our needs…  A rig that can go just about anywhere, if we’re careful and willing to go around some stuff, driver forever over the nastiest back roads, at reasonable speeds, and still get us to work come Monday.  Over the next month or two the Blue Bunny will roll into Metal Tech’s shop and go under the torch to receive its new rear suspension.   As it’s evolution progresses, we’ll bring you lots of pictures and many more details…

But suspension is only part of the story…  we’ll also address the need to improve the transfer of horse power down to the wheels and keep them all turning.  We have plans for that as well…  but that’s another post.

What would the holidays be without endless website and magazine Christmas gift lists to send Santa?  Since we take the road less traveled, we prefer to strategically slip our off-road adventure Christmas list into the pages of Hula Betty‘s Cosmo.  We also like to drop subtle  reminders to her about how all our off-road adventure skills and gear will save lives when a meteor the size of Kansas comes hurdling towards earth and we need to escape into the mountains to avoid Armageddon.  In case Bruce Willis fails to save the planet, we are prepared.

It’s not like Hula Betty took the hint last year, but in keeping with tradition here is our new Christmas wish list.

1. Pelican Flex-Neck LED flashlight – This light has a magnetic base which allows the lite to attach to metal surfaces and 15″ flexible neck that directs bright LED light in any direction. Map reading, working under the hood, or helping you rummage through a duffel on a dark and stormy night this light will deliver 7 hours of burn time on two AA batteries.
2. Winch line extension – Getting unstuck can sometimes mean running a line out beyond the length of your winch’s capacity.  Having an extra 50 foot extension handy can be the difference between continuing on with your adventure and a long hike out.
3. Anything Metal Tech – If you own a Toyota Land Cruiser, FJC, 4Runner or Tacoma these guys should be your new best friends. High quality products engineered from the ground up to protect your rig and service that never ends. Bumpers, sliders, tube doors and roll cages are just a few of signature Metal Tech items on the Christmas wish list.  (don’t tell Hula Betty, but there is growing pile of stuff at their shop with our name on it)
4. LuxuryLite cot –  When your adventure keeps you on the trail for days and nights on end, a good night’s rest is a must. While the young Turks can sleep on the ground, old bulls know the value of a cot that keeps your tired bones off the rocks and supports you head to toe. The LuxuryLite cot is lite weight and compact enough for anyone to bring along regardless of how you travel.  This one really goes out to  our Dual sport bike friends where space is at a premium.
5. Off-road Trail Tools wheel chocks – When gravity isn’t your friend, you’ll want a good set of wheel chocks to keep your rig stead fast on pavement or dirt. Unlike most others, these chocks fold up into a very compact form factor to stow away neatly and then quickly deliver stability when needed on just about any surface.
6. Contribution to BlueRibbon Coalition – Doing something for others is what Christmas is suppose to be about. The BlueRibbon Coalition (BRC) champions responsible use of public lands and waters for the benefit of all recreationists.  When others are trying to shut out motorized use of public lands, the BRC is working hard to secure, protect, and expand outdoor recreation access and use, for all.
7. Zarges storage case – Being self sufficient on an off-road adventure requires a lot of gear that you need to store. Zarges aluminum containers allow you to organize and transport food, recovery gear, cameras, kitchen equipment, first aid supplies, clothing and everything else safely out of the elements. Their design, protects your gear from dirt, rain and grim when its traveling on the roof or pulled down next to your camp overnight for easy access in the morning.
8. Subscription to Overland Journal –  If you’ve read our website top to bottom (you did right) and you’re still looking for inspiration for your next adventure, this is the magazine for you. The journal is about exploration. The journal covers long weekend trips, gear reviews and 10,000-mile expeditions across every continent in the world. And as a bonus the photographs filling their pages are worthy of placement in the finest main street galleries.
9. Magnetic spice tins – Meals on an off-road adventure are more than just calories. A good meal around a camp fire at the end of a day exploring is the thing culinary dreams are made of. A dash of Indian cumin, a pinch of pink sea salt, a bay leaf, a measure of rosemary, sage and just a hint of  Madagascar cinnamon will turn any meal into a gourmet dining experience. Magnetic tins keep all those spices securely at hand.
10. Primus Power Ignitor 3 – A good lighter is a big advantage when it comes to starting a fire, camp stove or indulging in fine a cigar after a long day on the trail. This lighter burns at 1300°C  and is as close as you can get to weather proof.  And while the Primus ignitor will help you get your burn on. You might want to ask for water proof matches and a flint stick for back up.

Not sure whether I’ve been naughty or nice this year but come December 25th (Christmas morning, not Christmas eve) we’ll find out.  And regardless of what is under the tree, I’ve already received my present this year.  Back in January, Hula Betty didn’t blink an eye when I asked to go on our Baja Off-Road Adventure…  She just said “be careful, have fun and comeback in one piece.”  You can’t ask for a better present than that.

Whats the difference between wheeling a local 4×4 trail and an epic off-road adventure?  You check your rig the day before you wheel a local trail and fix it when you get back home, on an epic off-road adventure you check your rig every morning and fix it every night.

OK, so Conan has nothing to worry about from my stand-up, but there is a lot of truth in that joke.  Pilots know that you live and die by your check lists: prior to take-off, during flight and prior to landing.  The same is true in wheeling, especially if you will be dependent on your rig for a number of days, with no support in sight.

Sometimes with all the excitement and work of an off-road adventure it is easy to forget something (trust me, I’ve forgotten more than my share).  In order to reduce the chance of missing a potential problem, we now keep a laminated memory jogger checklist to help us stick to our inspection program before, during and after a day on the trail.

Pre-Trip / Daily – Rig Inspection

1. Axles & Differentials – bolts, boots, clips, u-joints, grease points.  Check to ensure everything is tight and look for leaks or drips.
2. Battery – clean terminals, check for damaged, corroded wiring. Check for loose connections.
3. Brakes – drums, rotors, pads/shoes, fluid, hoses, leaks, check parking brake, brake lights.  Helps to have a second person pressing on the breaks while checking.
4. Belts & Hoses – look for cracks or bulges. Ensure spares are packed in the parts bin.
5. Body/Frame – look for cracks and rust.  Remove any sticks and debris caught up in the frame.
6. Cooling/Heating system – look for leaks, fluid levels, clean and repair fins, check hoses and clamps, thermostat, radiator cap. Ensure leak repair kit is packed in parts bin.
7. Communications – CB / ham radio, antenna broadcast and receive.
8. Driveline/Transmission – inspect case and shifter, leaks, fluids, universal & CV joints, skid plates
9. Engine – carburetor, fuel injectors, spark plugs, wires, PVC valve, pumps, distributor & wire, check for leaks and cracks, air filter (clean or replace).  Keep an eye out for loose wires and hoses.
10. Exhaust – muffler, tailpipes (rust or holes or hanging). Check all hardware holding tailpipes in place.
11. Fluids – oil, transmission, brake, radiator coolant, gear oils, wipers, power steering (check levels and color).  Ensure extra fluids packed in rig.
12. Lights – headlights, brake lights, auxiliary lights; make sure they’re aimed properly.  Verify turn signals.  Ensure extra bulbs packed in parts bin.
13. Steering – check alignment, fluid level, belts and hoses, pump and reservoir.  Look for leaks.  Check tie-rod boots for tears or rips.  Check all joints for play.
14. Suspension – coil overs, springs, shocks, alignment, wheel bearings, steering linkage, control arms, pan bars.  Notice unusual play in components.
15. Tires – tighten (torque) lug nuts, air pressure, tread wear (including your full-size spare), look for cuts and missing chunks, torque beadlock bolts.  Ensure auxiliary air pump or CO2 tank is operational and packed in the rig.
16. Winch – free spool rope and inspect, rewind onto drum.  Check for loose connections and look for frayed rope or wires.
17. Wipers – check for wear, fluid level.

Trail Head – Rig Inspection

Before you take off for the trail start the engine and inspect the following with while the rig warms up:

1. Fuel level – check fuel gauge ensuring level is on full (plan for next fuel stop if necessary).
2. Voltage – check voltage gauge for proper level.
3. Oil pressure – check oil pressure gauge for proper pressure.
4. Engine RPMs – check tachometer to ensure smooth maintained engine idle speed.  Listen for misfires and unusual engine noise.  (you should know your rig’s personality including how its engine sounds normally)
5. Temperature – check temperature gauge to see proper operation and coolant temperature.
6. Transfer case – ensure transfer case engages in 4 wheel high and 4 wheel low as well as disengages smoothly.
7. Traction control – test that the rear locker engages correctly. Test A-trac (or front locker) for proper engagement.  Make sure the disengage as well.
8. Load – ensure load is properly secured.  Check hi-lift jack, shovel and any exterior mounted items.
9. Walk around – make one last walk around the rig.  Look for any item left out.  Ensure valve stem caps are screwed on after airing down.  Check that nothing was left resting on the spare, bumper, hood or roof.

If you are on a multi-day off-road adventure stop early enough so that you can fully inspect your rig for damage while the sun is still out.  Stopping early also gives you enough daylight to see what you are doing if repairs are needed.  Tip: remember fluid levels change based on the engine temperature always read against the appropriate level marks.

While a checklist wont prevent breakage, it will go a long way to lessening potential problems.  By catching leaks, tears and loose bolts early on, you can hopefully avoid finding yourself trying to reconnect a break line while standing in axle deep mud.  But just in case all hell breaks loose… carry lots of duct tape.
